Description

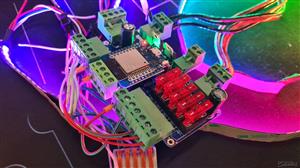

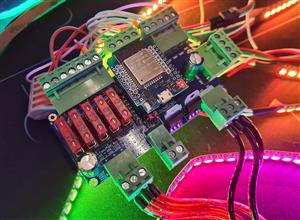

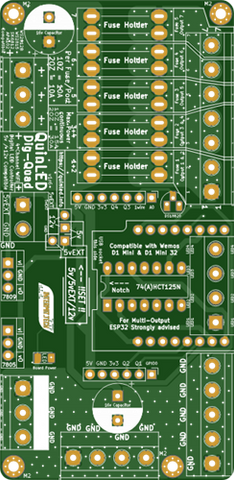

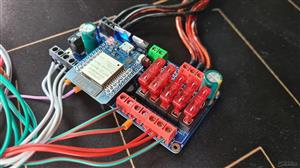

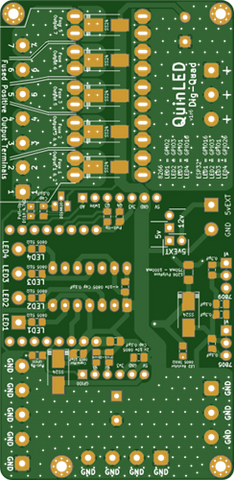

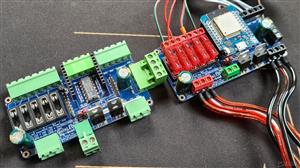

The QuinLED-Dig-Quad is a Quad channel ESP8266/ESP32 based addressable LED controller! Easily integrates with MQTT and Home Assistant or can be used for E1.31 like xlights/vixen, custom arduino code (FastLED), etc.. Designed to build yourself, easy to solder!
Unique properties are high current handling, 5x onboard fuse, 7x Positive and Negative (fused) terminals to make power injection easy, reverse polarity input and output protection and choice of either an ESP8266 or ESP32 (Highly recommend for multi-channel) and lastly the board is 5v and 12v compatible!
Works with most currently available addressable LED strips/strings/panels such as ws2812b (Neopixel), ws2815, SK6812, APA102, etc.. Also provides 6 broken out GPIO pins and an onboard temperature sensor.
