The electrical test is performed before delivering the PCBs. Usually, all the PCBs will go through E-test after manufacturing. Open circuits and short circuits are the default test types. PCBGOGO also provides other test types according to customers’ requirements.
The function of the electrical test for PCBs
The electrical tests have become an irreplaceable test method for PCBs with blind vias and buried vias except for the visual inspection and the AOI. Only E-test can check out the missing connections on the board. The main electrical testing procedures for PCBs are listed as following:
· Circuits open and short testing
· Capacitance testing
· Resistance testing
· Comparative testing
· Flip testing
· Continuity testing
· Adjacency testing
Two major types of test equipment used in electrical test
· Flying probe

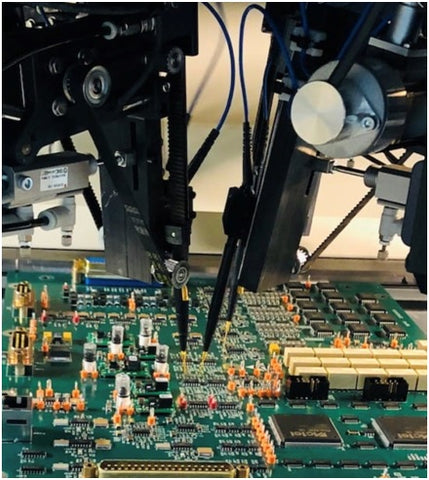

A flying probe is the machine used for the flying probe testing method. With software that suitable for the PCB layout, the flying probes check the signal one by one. The whole testing time is about 1 to 3 minutes.
Advantages:
No need for fixed testing tools
Low cost
Short delivery time (suitable for PCB prototyping)
· Bed of nails fixture

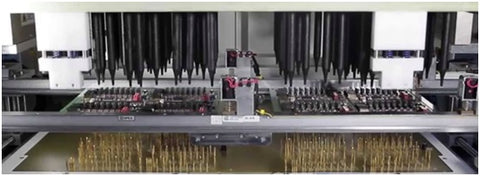

Bed of nail is a specific tool for fixture test. Each type of PCB has a bed of nail. This testing method always needs 5 to 10 seconds for one PCB. Because it is necessary to make a test fixture for each type of PCB, which is not economical for PCB prototypes.
Advantages:
Fast speed
More accurate
The fix tools are reusable. (suitable for batch production)
These two types of E-test both have advantages and disadvantages. The flying probe test may be cheaper at initial cost, but the bed of nails fixture test is a higher cost-effective for batch orders.
