3 Types of via covering

Via covering

Via covering means that the vias are covered by the solder mask or other chemical materials. Why do the vias sometimes need to be covered in the PCB manufacturing process? Because the solder paste may get into the vias and cause short circuits if the through-holes are exposed. The condition in which the vias are not covered is called via opening.

 Types of via covering

Usually, three types of the via covering are possible in PCB fabrication.

1. Via tenting

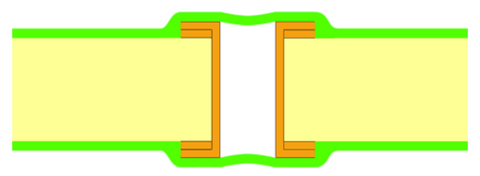

Via tenting means that the via is covered by a layer of solder mask. It is the simplest way of via covering. Generally, the vias using this covering type should not be greater than 0.3mm.

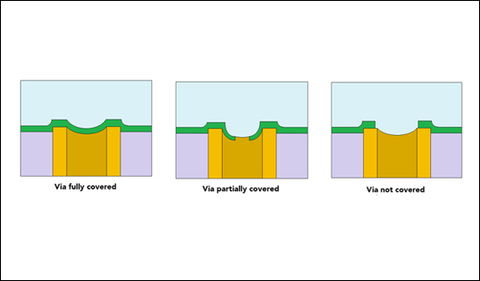

The solder mask can be applied on both sides of the PCB or only one-side of the PCB.

2. Via plugging

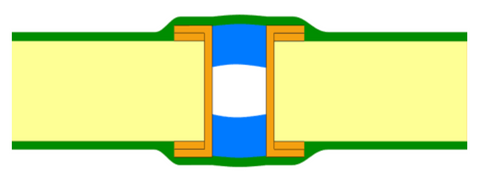

Via plugging is the case that the vias are partially closed with non-conductive media (epoxy/resin) and a layer of solder mask. There may also be no solder mask layer. Generally, the plugged vias should not be greater than 0.5mm. And multi-layer PCBs are recommended to do single-side via plugging.

The vias also can be filled double-sided or single-sided.

3. Via filling

Via filling indicate that the vias are fully filled with non-conductive materials. Sometimes there is another layer of solder mask over the non-conductive fillers.

There are two types of via filling:

Via filling and covered via

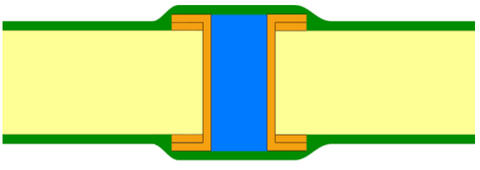

    The vias are filled with non-conductive media and covered with a layer of conventional solder mask.

Via filling and capped via

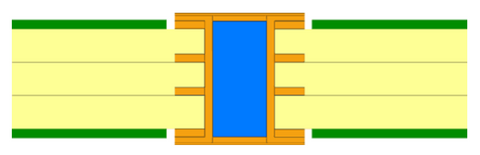

Filling the via with non-conductive paste after the via is plated-through. Then metalizing and plating the via when the paste is hardened, and making the surface planar. The via surface is solderable in this situation and can increase additional traces between BGA vias.

The comparison of via covering types

Via filling is the most expensive and most reliable.

Via plugging is the most practical way, and it is cheaper than via filling.

Via tenting has the lowest price, but it may cause possible failures.


Keep the vias open on both sides is the easiest and cheapest method, but short circuits may exist in this situation. We recommend that you choose one the via covering type based on your budget and the quality requirement of the PCBs.
