3 printing methods of silkscreen

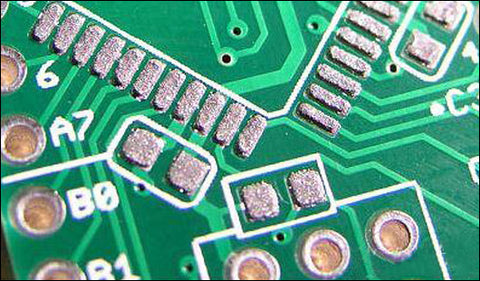

The silkscreen is usually the white images or texts we often see on the PCBs. The ink silkscreen uses a non-conductive epoxy ink. The standard colors we typically see are white, black, and yellow. But any other colors are also available. A well-designed silkscreen can reduce the chance of errors during PCB fabrication and the time to find these errors.

What information does the silkscreen contain?

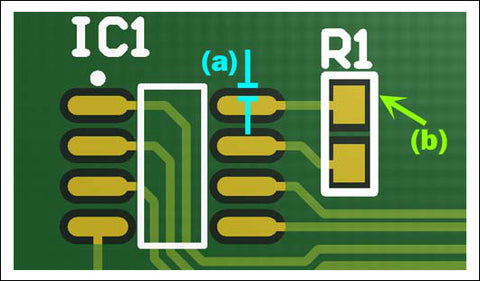

    Silkscreen contains much information about the PCB assembly and PCB manufacturing, which are critical to the proper placement and orientation of the components. Therefore, silkscreen printing must be readable and clear to ensure effectiveness and practicality. Silkscreen usually provides the following information:

1. Identifiers, component labels, logos.

2. Identify the type of components.

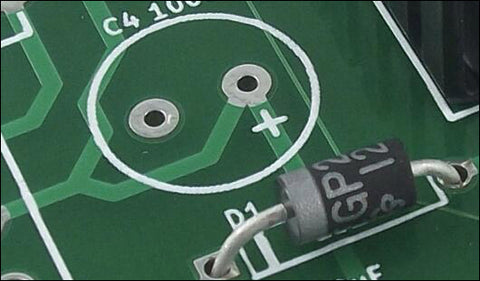

3. Indicate the orientation of the polarized components.

4. Indicate which pin should be connected to which pad.

5. Warning symbols: some parameters should be avoided.

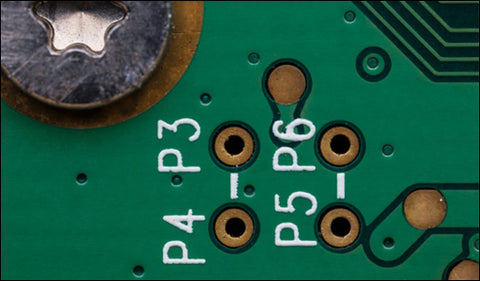

6. Part numbers, test points,

7. Labeling: manufacturer information, model, serial numbers, testing certifications, dates.

Three printing methods of silkscreen

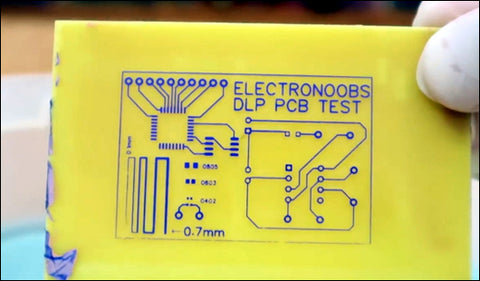

1. Direct legend printing (DLP)

This silkscreen method uses an individual inkjet printer with acrylic ink. The acrylic ink will be cured with UV light after printing. And DLP is considered the most accurate and fastest way to print PCB silkscreen. But it is the most expensive method.

2. Liquid photo imaging (LPI)

LPI is a process that is applying the liquid photo-imageable epoxy onto the board and exposing the board with UV light, and then the ink is cured. This method provides the best resolution of text and images but takes more time. It is a cost-effective silkscreen method.

3. Manual printing

   Manual printing uses a text stencil that is made of nylon. After the epoxy ink is applied over the board by a stencil, then bake the board, and the ink will be cured. This method is faster and easier to manufacture than LPI, but it provides inaccurate results.


Nowadays, high-density PCB designs need smaller text sizes and better readability. DLP can meet these demands, and it becomes the best choice for silkscreen. If you have enough budget, choose DLP. If you need a cost-effective solution, choose LPI. If you don’t have a high standard for the silkscreen, manual printing is also available.
