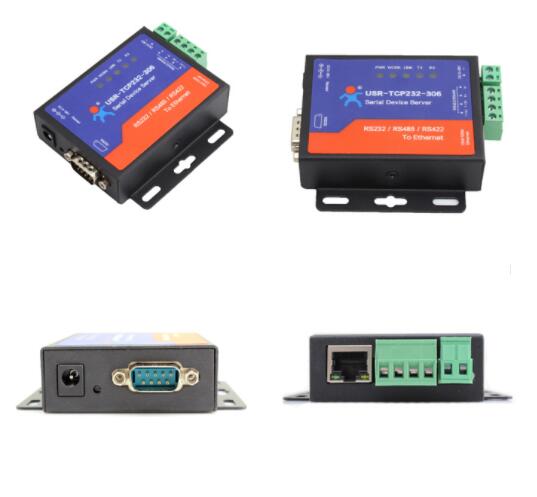

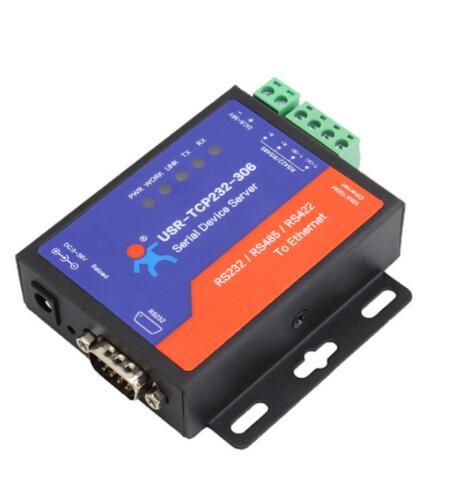

USR-TCP232-306 Low cost RS232 RS485 RS422 serial to network ethernet converter with web page function
Regular price
$34.80
Sale
Default Title
Add to cart
Feature
Chip Solution
Atmel, work temp at -20~75C
Power Supply
DC/Terminal type 5V~36V
Serial Port
Supports RS232/RS485/RS422, can't be worked at one time
Work Mode
TCP Client/TCP Server/UDP client/ UDP server/
HTTPD client
Basic Function
DHCP/DNS/Webpage
Baud rate
600~230.4K bps
Certification
CE/FCC/RoHs/WEEE
Character
Serial Port
RS-232 / RS-485 / RS422
Port Type
RS-232: DB9 male port; RS-485: A+/B; RS422: TX+/TX-/RX+/RX-
Baud Rate
600 bps ~230.4K bps
Data Bit
5/6/7/8
Stop Bit
1/2
Buffer
Receive: 2K bytes;
Flow Control
Not this function
Protect
RS-485: ESD/lightning protection/ 2KV electric static protection
Ethernet
1 Port
Speed Rate
10/100 Mbps, MDI/MDIX
Buffer
Receive: 4K byte / Send: 6K byte
Protection
2 KV Electromagnetic isolation for Ethernet port
Network Protocol
IP/TCP/UDP/DHCP/DNS/HTTPD client
Power Supply
DC 5-36 V (ESD/ Surge prevention)
Work Temp
-25~75C
Software
Setup/Virtual COM
