* Anti-static design to prevent damage to the PCB due to static electricity and leakage.
* Built-in Japan imported vacuum pump, suction more robust.
* The heating system uses the sensor closed loop temperature control, the temperature is accurate.
* Heater 36VAC low-voltage power supply, and the grid completely isolated, safe and reliable.

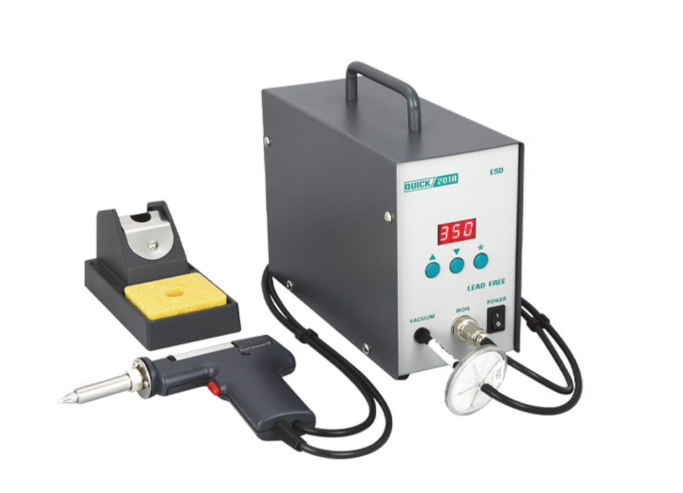

* LED digital display, push-button thermostat, and optional automatic sleep function.
* Use digital temperature calibration to improve reliability.

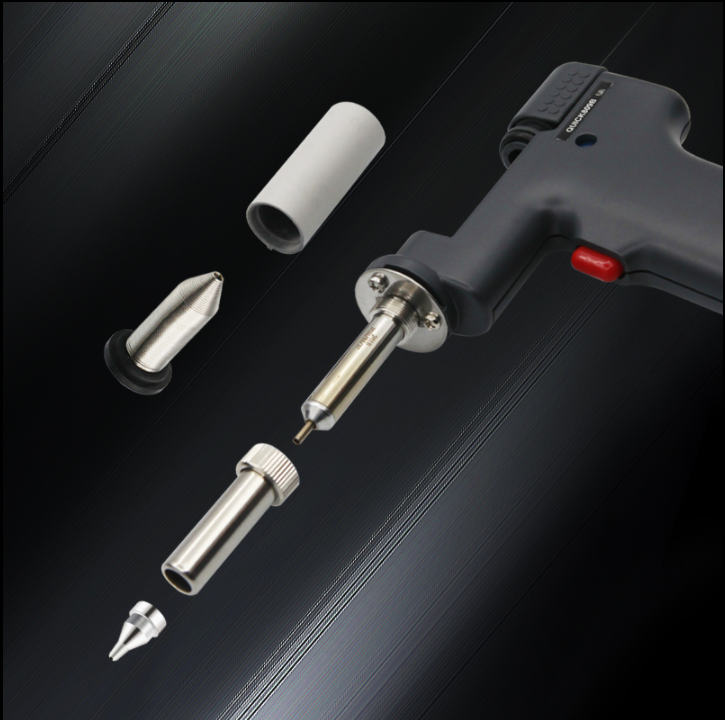

* Suction tin and heat pipe specially designed, even if the solder in the molten state can also be sucked into the filter without regular maintenance, high efficiency.
* With anti-hot vacuum hose, to prevent contact with the heating parts have been destroyed.
* The host uses lead-free soldering design, as long as the use of lead-free suction nozzle can be truly lead-free low temperature demolition welding.
Suction tin pump power 12V / 2A
Heating power 90W
Suction tin temperature 200C-450C
Suction tin pump diaphragm
Vacuum degree 600mmHg
Resistance to ground resistance <2Ω
Suction nozzle to ground voltage <2mv
Size 105 (L) X250 (W) X165 (H) mm
