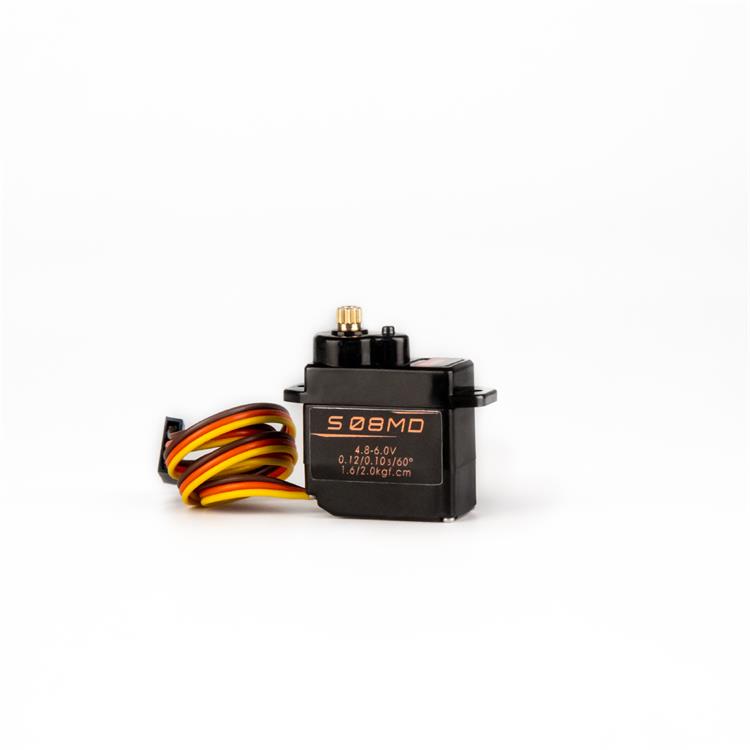

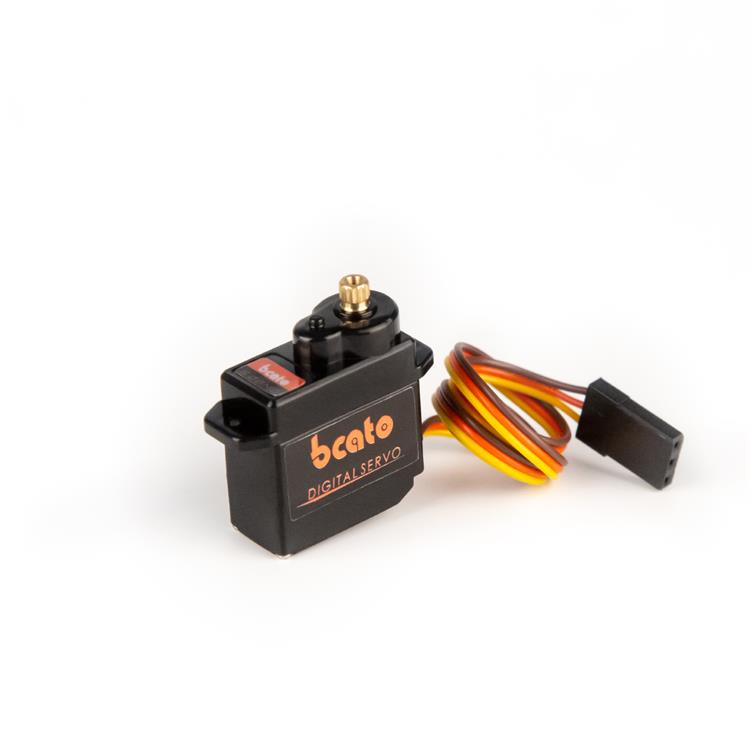

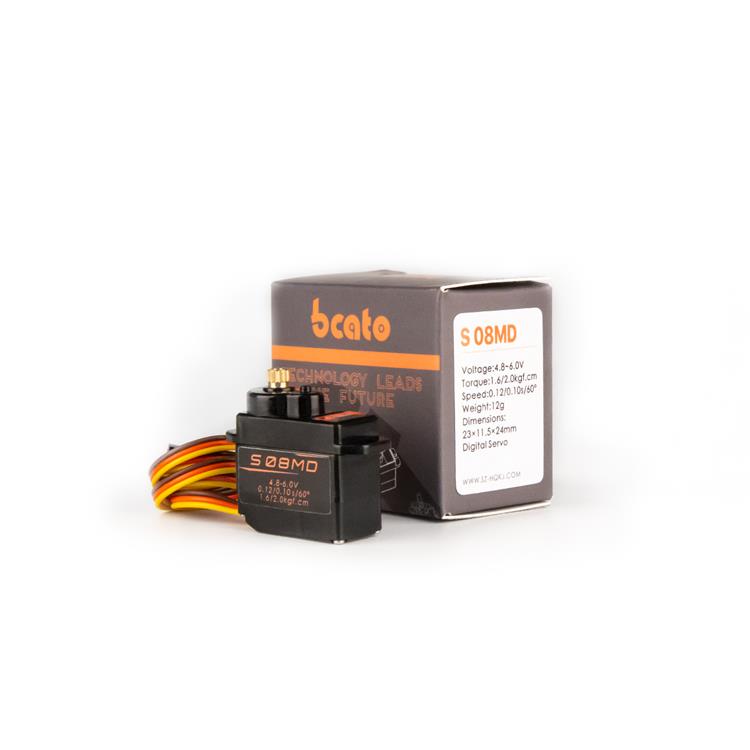

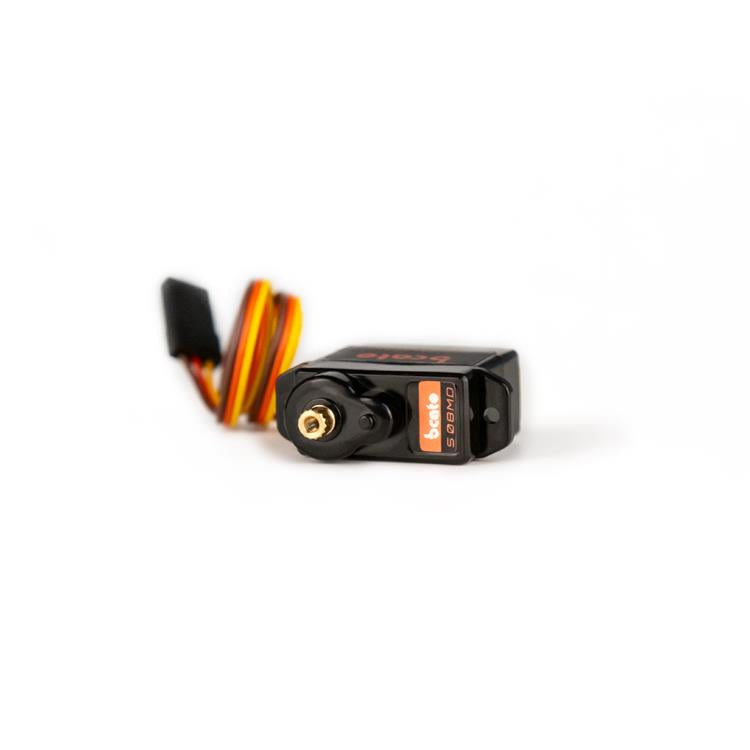

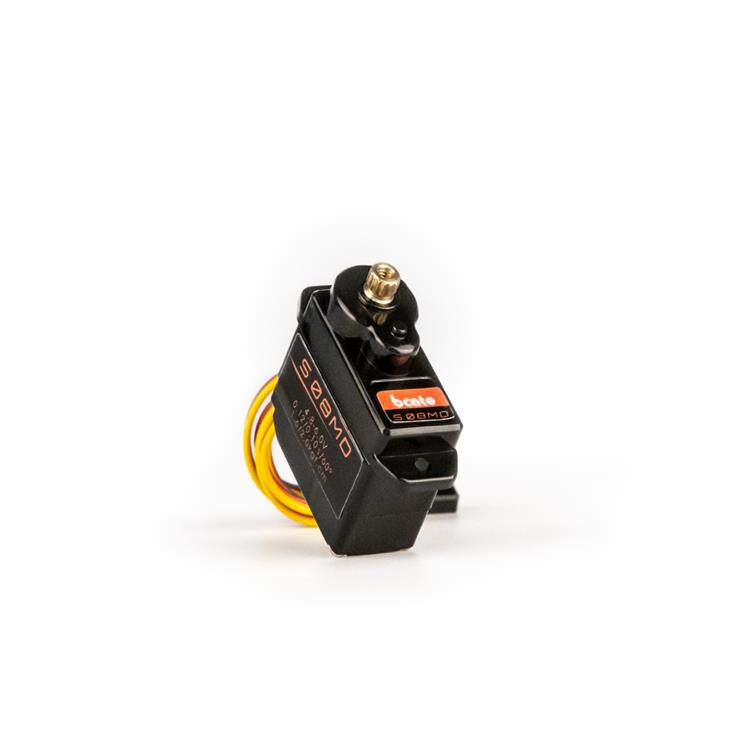

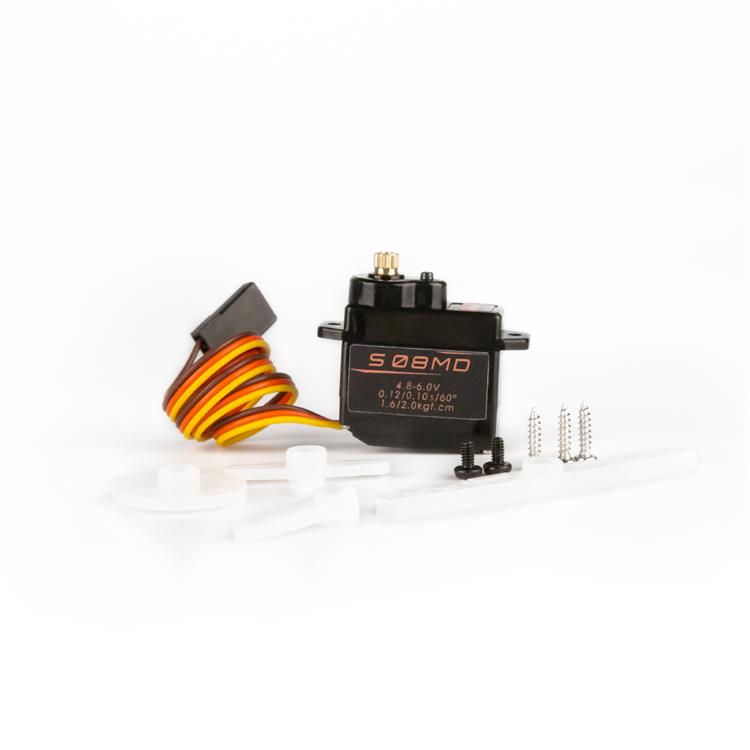

Mini Servo Series (S08MD )
Regular price
$8.69
Sale

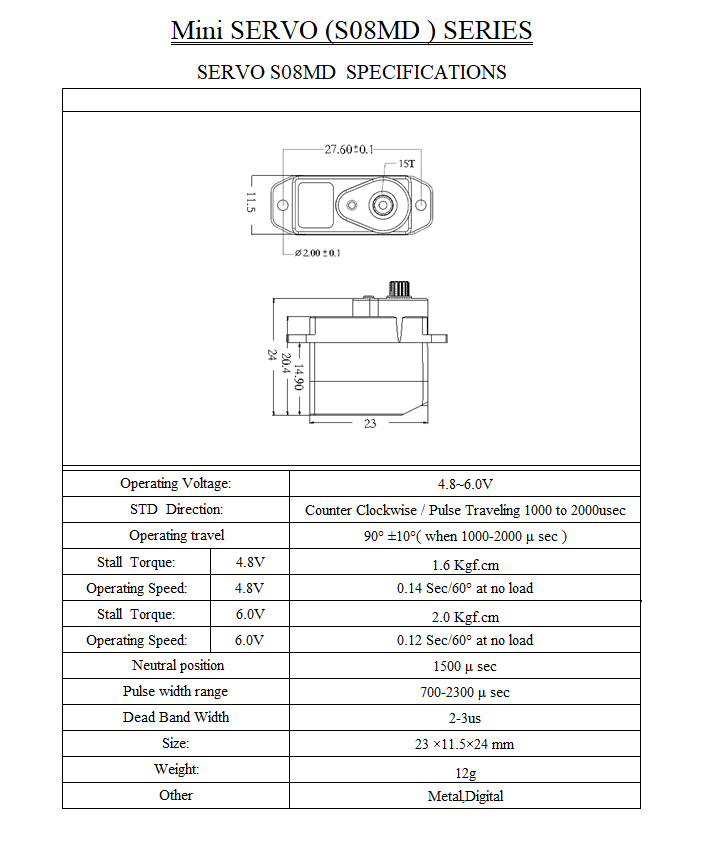

Storage temperature Range: -20℃~70℃
Operating temperature Range:-10℃~60℃
Operating speed (at no load):0.14sec/60o at 4.8V;
0.12sec/60o at 6.0V
Torque: 1.6/2.0 kg.cm (4.8V/6.0V)
Maximum current: 0.9A Max/1.0A Max(4.8V/6.0V)
Weight:9G
Flower head: 15T
Extreme angle: 360°
Control system: PWM
Operating travel: 90° ±10°( when 1000-2000 μ sec )
Neutral position: 1500 μ sec
Rotating direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Pulse width range: 700-2300 μ sec
Dead Band Width: 2-3us
Maximum travel: 145° ±10°( 700-2300μ sec )
Connector wire length:260mm
Size: 23x11.5x24 mm
Operating temperature Range:-10℃~60℃
Operating speed (at no load):0.14sec/60o at 4.8V;
0.12sec/60o at 6.0V
Torque: 1.6/2.0 kg.cm (4.8V/6.0V)
Maximum current: 0.9A Max/1.0A Max(4.8V/6.0V)
Weight:9G
Flower head: 15T
Extreme angle: 360°
Control system: PWM
Operating travel: 90° ±10°( when 1000-2000 μ sec )
Neutral position: 1500 μ sec
Rotating direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Pulse width range: 700-2300 μ sec
Dead Band Width: 2-3us
Maximum travel: 145° ±10°( 700-2300μ sec )
Connector wire length:260mm
Size: 23x11.5x24 mm
