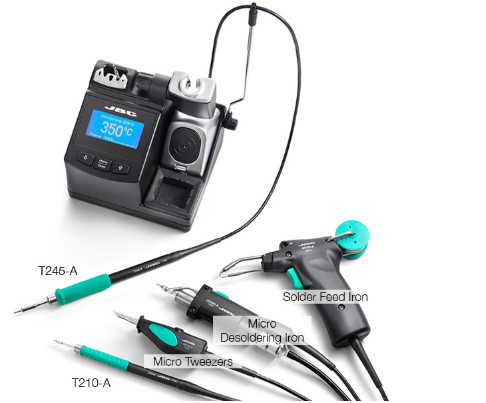

JBC original cp-2e welding station cp-2he welding station small precision hot clamp tweezers welding stand report This product purchase belongs to the commercial trade behavior

Pa120-a tweezers handle and C120 series soldering iron head are used for precision welding
The power is 80W, which can be applied to most of the welding requirements
Usb-b data cable can be used to connect the computer to observe the temperature curve.
Two seconds to 350 degrees
Up to 20 sets of parameters can be set using the menu
The unique sleep + sleep function can prolong the life of soldering iron head by 5 times
Humanized handle control, extremely comfortable handle

Specification parameters
Cp-1e 120V 50 / 60Hz. Input fuse: 2A. Output: 23,5v. Host style: cp-1e
Cp-2e 230V 50 / 60Hz. Input fuse: 1A. Output: 23,5v. Host style: cp-2e
Cp-9e 100V 50 / 60Hz. Input fuse: 2A. Output: 23,5v. Host style: cp-9e
– dimensions: 150 x 175 x 145 mm
– maximum output power: 80W
– temperature range: 90-450 ° C (190 ° - 840 ° f) (± 5%)
– welding ground resistance: < 2 ohms
– welding grounding voltage: < 2mV RMS
- Studio temperature: 10-40 OC / 50-104 of
– USB connection pad PC
Meet CE standard
Anti static "skin effect" protective shell
