ESP32-C3-DevKitC-02
Regular price
$11.90
Description of Components

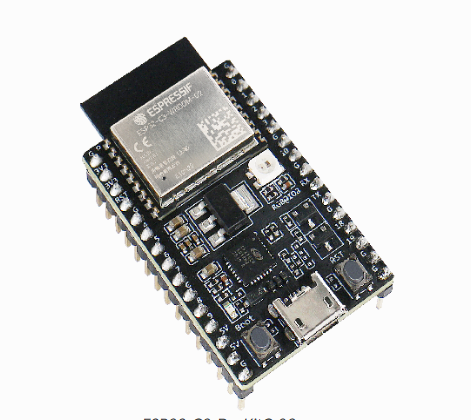

ESP32-C3-DevKitC-02 - front
The key components of the board are described in a counter-clockwise direction.
|
Key Component |
Description |
|---|---|
|
ESP32-C3-WROOM-02 |
ESP32-C3-WROOM-02 from Espressif is a powerful and general-purpose module that offers Wi-Fi and Bluetooth LE coexistence. It has a PCB antenna and a 4 MB SPI flash. |
|
5 V to 3.3 V LDO |
Power regulator that converts a 5 V supply into a 3.3 V output. |
|
5 V Power On LED |
Turns on when the USB power is connected to the board. |
|
Pin Headers |
All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board. |
|
Boot Button |
Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port. |
|
Micro-USB Port |
USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-C3 chip. |
|
Reset Button |
Press this button to restart the system. |
|
USB-to-UART Bridge |
Single USB-to-UART bridge chip provides transfer rates up to 3 Mbps. |
|
RGB LED |
Addressable RGB LED, driven by GPIO8. |
