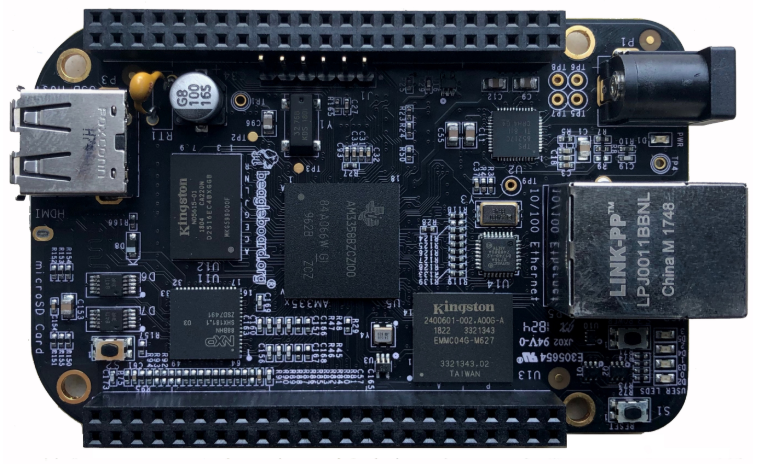

BeagleBone Black TI AM3358 Cortex-A8 development BB-Black Rev.C

BeagleBone Black TI AM3358 Cortex-A8 development BB-Black Rev.C

$74.80 Sale

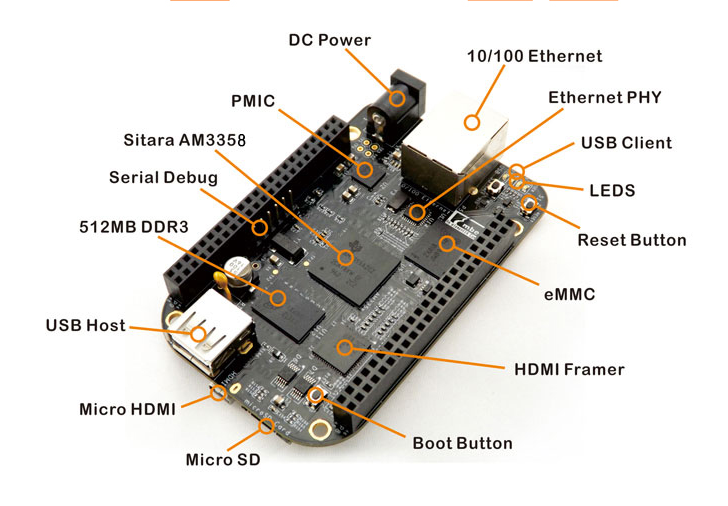

  • Processor:TI Sitara AM335x, 1GHz, 2000 MIPS
    • 1 GHz ARM ® Cortex-A8
    • SGX530 Graphics Engine
    • Programmable Real-Time Unit Subsystem
  • Memory
    • SDRAM: 512MB DDR3L 800MHZ
    • eMMC Flash:
      • Rev C: 4GB (as of 2014.05.21)
  • SD / MMC Connector for microSD
  • Power management: TPS65217CPMIC is used along with a separate LDO to provide power to the system
  • Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
  • Power Source
    • miniUSB USB or DC Jack
    • 5VDC External Via Expansion Header
  • Connectivity
    • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
    • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS / FS / HS
    • Serial Port:. UART0 access via 6 pin 3.3V TTL Header Header is populated
    • 10/100M Ethernet (RJ45)

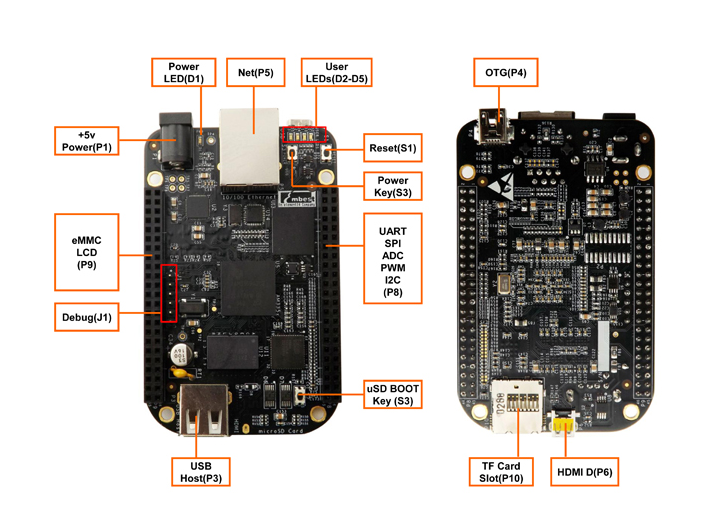

  • User Input / Output
    • Reset Button
    • Boot Button
    • Power Button
    • LED power indicator
    • 4 user configurable LEDs
  • Video / Audio Interfaces
    • HDMI D type interface
    • LCD interface
    • Stereo audio over HDMI interface
  • Expansion Interfaces
    • LCD, UART, eMMC
    • ADC, I2C, SPI, PWM
  • Operating Power:5V 0.35A
  • Board Size:3.4 x 2.1
