Specification:
1.Type: 6S 22.2V

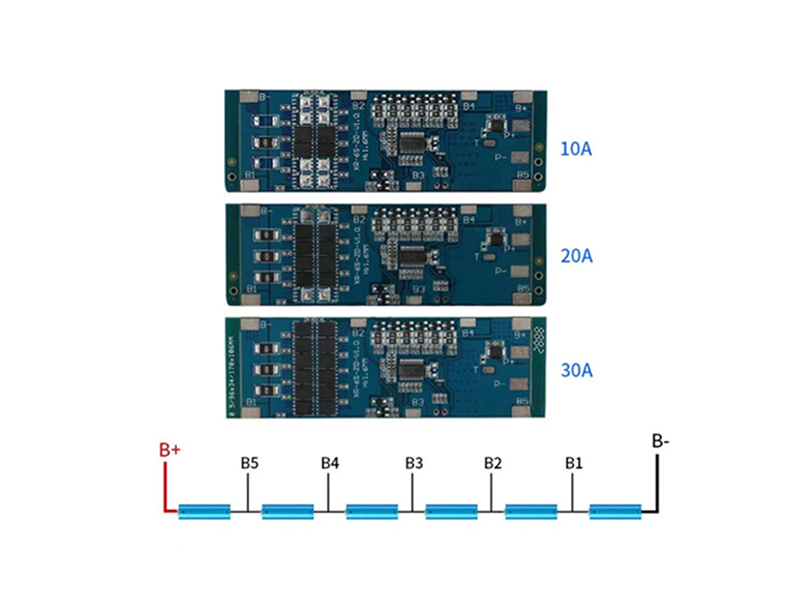

2.Connection method: Common Port
Discharge
1.Single battery over-discharge voltage: 2.7V±0.08V
2.Continuous working current: 10A/20A/30A
3.Instant protection current: 25A/50A/70A
4.Over current recovery conditions: charge recovery or disconnect load
5.Short-circuit recovery conditions: charge recovery or disconnect load
Charge
1.Single battery overcharge voltage: 4.25V±0.025V
2.Continuous charging current: 10A/20A/30A
3.Charge equalization voltage: 4.15V±0.025V
4.Charge equalization current：40mA
5.Charger voltage: 30V (recommended)
6.Charging over temperature protection: 50℃
7.Discharge over temperature protection: 70℃
8.Working power consumption: ≤30uA
9.Main circuit conduction internal resistance:≤50mΩ
10.Temperature range: -40 to 80℃
11.Appearance size: 96*34*2.8MM
Package included：
1pc *18650 Battery Charger Protection Board
Not For Free ! Please don't place the order Directly !

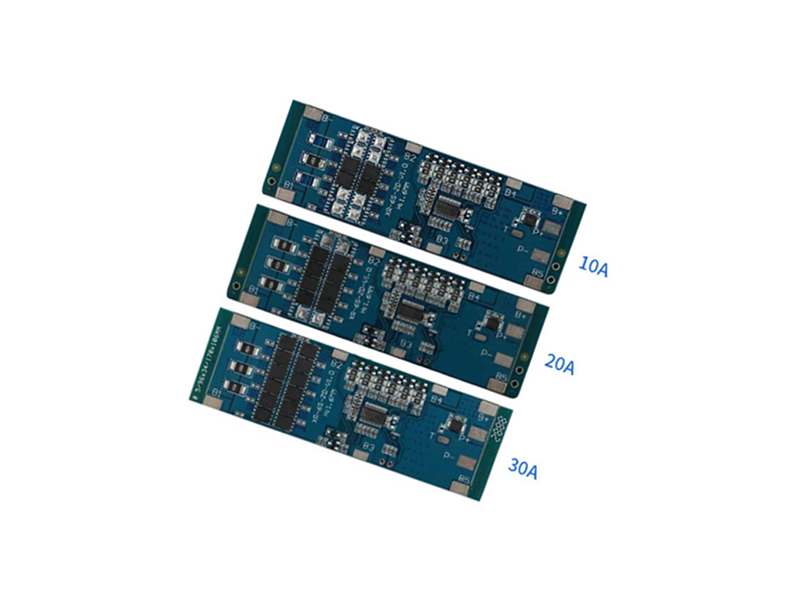

Tips:We have three specifications(10A,20A,30A) for this product.
Learn more about the product（details+price）, please drop email to sales@pcb-hero.com for better communic
