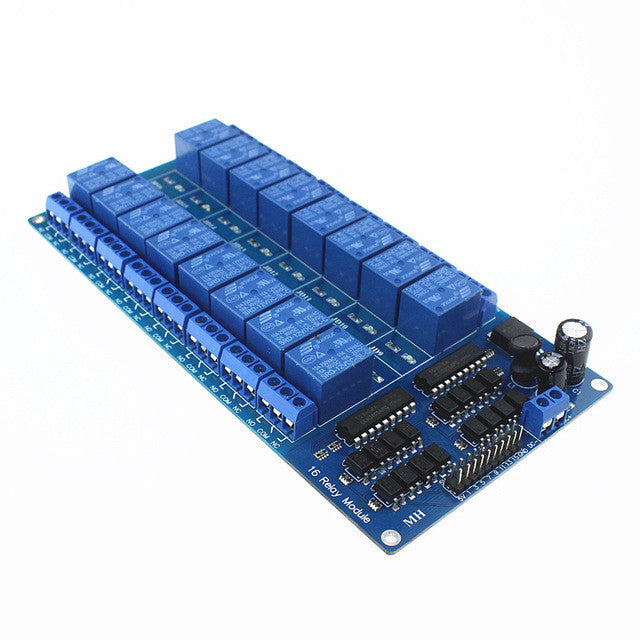

1, the control signal voltage range: trigger signal is low 0-2V; high voltage must not exceed 5V.
2, using the industry\'s top -quality isolation optocouplers, strong anti-jamming ability , stable performance ; trigger current is only 3mA.
3,1-16 road can be any full on / off , or any road.
4, the output forms: direct connect AC 220V 10A or DC30V 10A load.
5 , each relay common terminal COM are independent , user-friendly access to different signals , each relay are normally closed and normally open with the port .
6 , each relay is equipped with motion lights , pull off, off off.
7 , interface design humane, all interfaces can be directly connected through the terminal leads , very convenient.
8 with four mounting bolts holes for easy installation.

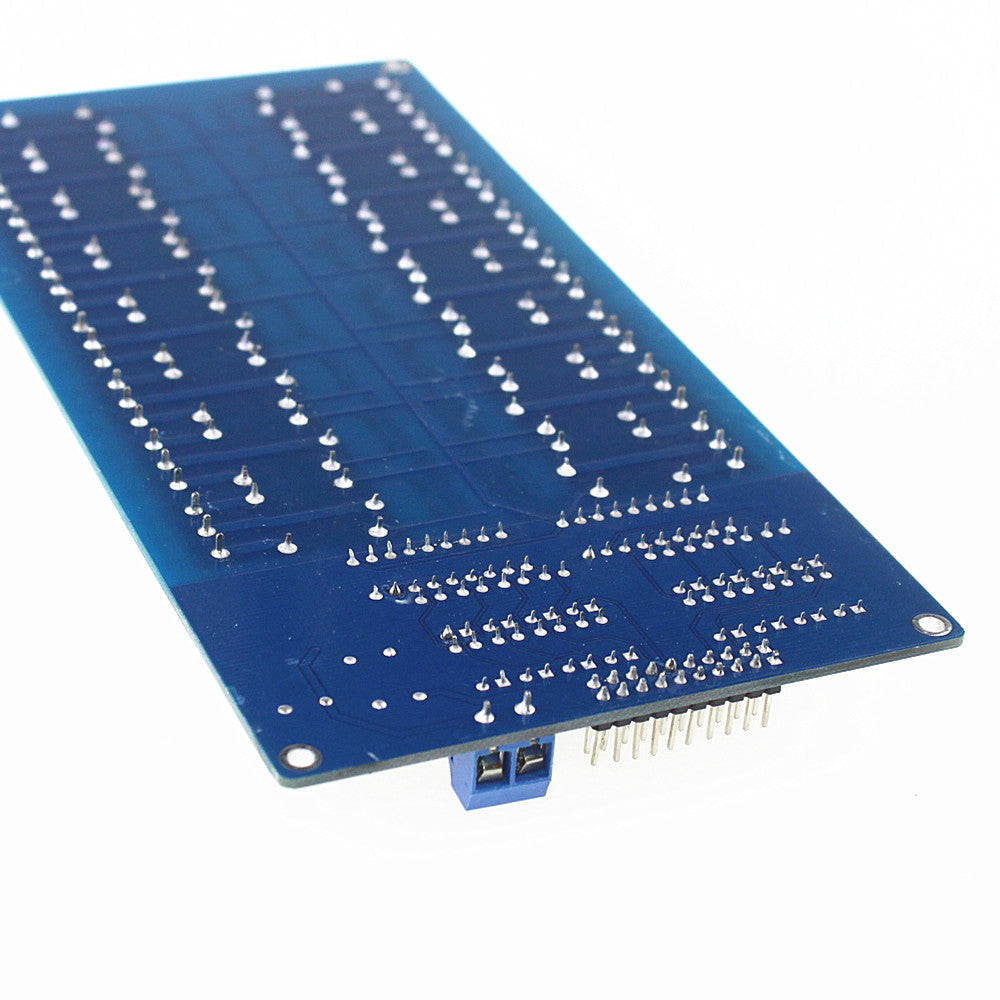

9, PCB board size : 180MM (L) * 90MM (W) * 20MM (H).
