An Introduction to Rigid Flex PCB | Structure, Costs, Manufacturer


In everyone's smartphone, there is at least a rigid-flex PCB. You will find rigid-flex PCBs on your mobile phone, headset, computer, and rigid-flex PCBs also find applications in aerospace and medical systems/equipment. What is a rigid-flex PCB? How much does it cost to order rigid-flex PCBs from manufacturers? Answers are below.

What is a Rigid-Flex Circuit Board

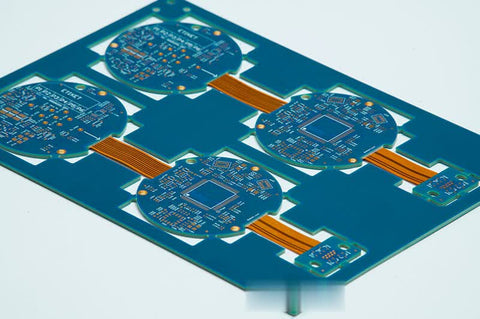

8R+6F rigid-flex PCB

A rigid-flex PCB is a hybrid board composed of the inner flex layers and external rigid layers. The inner layers of the rigid region are flexible. And the rigid region and flex region are electrically connected. If the flex section is thinner, the bending radius is smaller, and the flexibility of the circuit board is better.

Rigid-flex PCBs are manufactured by: laminating the entire board's flexible layers > laminating the external rigid layers to the flexible layers > removing the redundant rigid FR4 materials from the flex section > mechanical drilling if the board requires.

Depending on the application requirements, rigid-flex PCBs structures are different and numerous. But there are three main structures:

  • Traditional symmetrical construction - the flex layers are symmetrical (the same upper and lower rigid layers number)
  • Asymmetrical construction - the flex layers are outward asymmetrically (different upper and lower rigid layers numbers)
  • HDI construction - the rigid layers have blind/buried vias (microvias), and the HDI builds of the rigid section include 1+N+1, 2+N+2, 3+N+3, 4+N+4

Microvias penetrate only one rigid layer, so they are laser drilled and electroplated on the rigid layer before the lamination process. The positioning has to be highly precise. Therefore, HDI rigid-flex PCB manufacturing has a high scrap rate, and the board prices are higher than FPC and normal PCBs.

Is the Rigid-Flex PCB Solution Expensive or Cost-Effective?

Rigid-flex PCB manufacturing is expensive, but the assembly is simplified, and the rigid-flex PCB reduces solder joints and board-to-board connectors. So the overall manufacturing cost of your system/product is reduced, especially if the space is compact.

Rigid-Flex PCB Prices

So what is the price range of the rigid flex PCBs? Rigid-flex PCB prices are not fixed, depending on different manufacturing requirements, PCB materials, and electronic components for assembly. But you can take a look at the below rigid flex PCB quote example to roughly know rigid flex PCB prices (quoted by PCB HERO):

Board layers
Panelized board size
250mm×283mm (5pcs/panelized board)
Copper weight
ENIG: Au 1µ
Smallest via
0.4mm diameter,  0.2mm drill
PCB ink and silkscreen
Green ink, white silkscreen
FPC Coverlay
Yellow film
Build time
20 days
10pcs quote
20pcs quote

You may wonder, why is the price of 10pcs $939, the 20pcs price of $1096? The PCB factory manufactures boards in square meters, so 10pcs and 15pcs may have the same manufacturing price but 16pcs charges more. For this reason, PCB prototyping unit cost is the highest, and large-scale PCB production has the lowest unit price. If you want the best cost-effectiveness, here is a trick - you can ask the PCB manufacturer to quote for several PCB quantities and choose the best-price quantity.

The customer orders manufacturing, components, and assembly for the rigid-flex PCBs from PCB HERO . For privacy protection, the BOM is not displayed. Each rigid-flex PCB needs 294 PCB parts. And the 10pcs PCB assembly price (including SMT stencils) quoted is $391, 20pcs PCB assembly price (including SMT stencils) quoted is $501.

A Recommended Rigid-Flex PCB Manufacturer

PCB HERO is a leading rigid-flex PCB manufacturer in China that serves clients around the world. You can order rigid-flex PCB manufacturing, assembly, and components altogether from PCB HERO from prototyping to large-scale manufacturing. PCB HERO is a recommended rigid-flex PCB manufacturer for these reasons:

  • PCB HERO  has strong rigid-flex PCB capabilities such as HDI 4+N+4, gold fingers, FR4/PI/steel stiffeners.
  • Strict quality control, certified with ISO, UL, REACH, RoHS, IATF 16949. IPC-A-610 Class 2/3 assembly standards.
  • Professional one-on-one engineering support for customers throughout the entire rigid-flex PCB project.
  • Free electronic component sourcing services of traceable quality for rigid-flex PCB assembly.

Please take a look at PCB HERO's capabilities in rigid flex PCB manufacturing:

PCB HERO's Rigid Flex PCB Capabilities
rigid section: 2 to 24, flex section: 1 to 6
Build time
1 day to 4 weeks
Board size
Min. 4mm×4mm to Max. 457mm×610mm
Final board thickness
0.05mm to 0.6mm
Polyimide, high TG polyimide, FR4, FR4 high TG, RA copper, HTE copper, adhesive
PCB thickness in flex section
0.01mm to 0.2mm
Min. pitch
HDI stack-up
1+N+1, 2+N+2, 3+N+3, 4+N+4
Aspect ratio
Copper thickness
1/3oz to 3oz
Min. track/space
Min. mechanical drilling Ø
Hole size tolerance
PTH: ±2mil, NPTH: ±1mil
Hole position tolerance
Surface finishes
ENIG: Au 1µ to 5µ", Ni 80µ to 200µ"
Immersion tin: 0.8µm to 1.2µm
Immersion silver: 0.15µm to 0.45µm
Hard gold plating: Au 1µ to 50u", Ni 80µ to 200µ"

Please feel free to contact PCB HERO via email at sales@pcb-hero.com  or register to get an online quote if you have any needs.


This article introduces what a rigid flex PCB is, rigid flex PCB structures and costs. Rigid flex PCB provides a good solution to save space and provide dynamic stability for products/systems with a difficult space, and it reduces the overall product manufacturing costs. PCB HERO is a reliable rigid flex PCB manufacturer with possibly the highest manufacturing level. If you want to order or consult about rigid flex PCBs, don't hesitate to contact PCB HERO.
