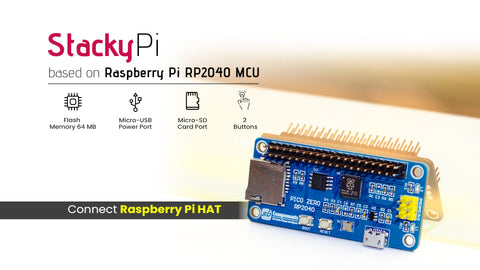

StackyPi - Raspberry Pi RP2040 Based Hardware for Connecting Raspberry Pi HATs
StackyPi is a small and powerful board that has the RP2040 microcontroller and one set of 2x20 pin headers for connecting Raspberry Pi HATs. It implies that a Raspberry Pi HAT may be plugged in and operated on the StackyPi - Pico Zero RP2040, allowing the user to execute additional operations…

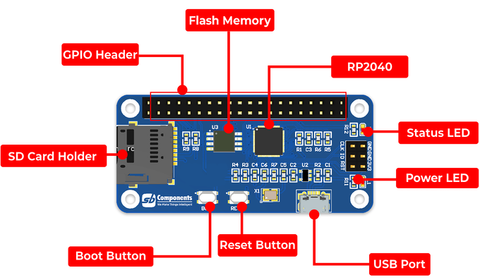

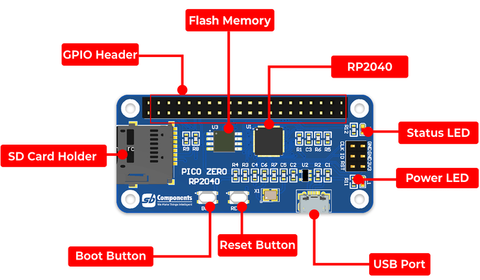

The StackyPi has standard Raspberry Pi 40 pins on its board, which can be used with any HAT. The Raspberry Pi HAT may be immediately plugged into the StackyPi, which contains the necessary power ports. The StackyPi is a board with clear and descriptive pin labels that make the user's job easier…
RP2040 MICROCONTROLLER
RP2040 is an advanced microcontroller with flexible digital interfaces that has a surprising amount of efficiency and power for a low price in a compact size. It consists of a low-power ARM processor and dual Arm Cortex-M0+ processors (up to 133MHz), embedded 264KB of on-chip RAM, DMA controller, 2 × UARTs, 2 × SPI controllers, and 2 × I2C controllers which let the module run faster. One of the great advantages of this low-cost microcontroller is the inclusion of a powerful new chip, the RP2040, at a worry-free price, which will aid customers in developing cost-effective embedded electronics items or projects.
