Latching vs non-latching relay

Very often even in technical literature ‘‘latching relays’’ and ‘‘non-latching relays’’ are mixed up. In fact, they have different features. Let’s check them one by one.

Differences between latching relay and non-latching relay

The differences between a latching and non-latching relay are the following:

Definitions

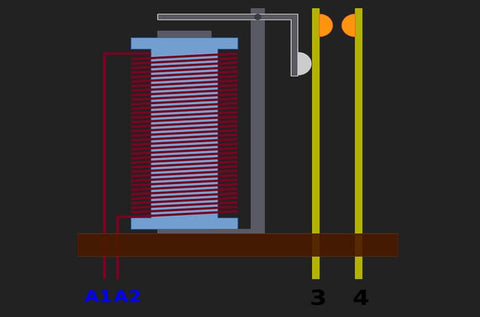

A latching relay is one that picks up under the effect of a single current pulse in the winding and remains in this state when the pulse stops affecting it, that is when it is locked. Therefore, this relay plays the role of a memory circuit. It is also known as bistable, keep impulse, or lockup relay. Non-latching relay is a standard mechanical relay and it needs a continuous current in the winding to remain in its contact position.

Energy saving

A latching relay helps to reduce power dissipation in the application circuit because the coil does not need to be energized all the time. But a non-latching relay needs to be energized all the time. Therefore, a non-latching relay consumes more power compared to a latching relay.

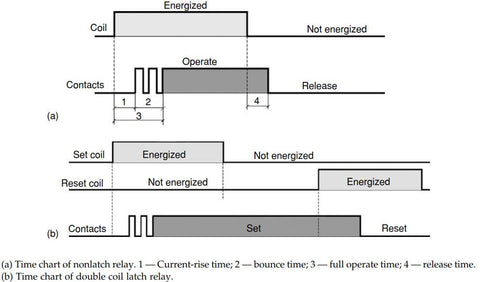

As illustrated in the figure, the contacts of a latching relay remain in the operating state even after the input to the coil (set coil) has been removed. As shown in the figure, the double-coil latch type relay has two separate coils each of which operates (sets) and releases (resets) the contacts.

Noise

Latching relay has noiseless switching for a maximum of comfort in household applications. Non-latching relay hums when they are operating.

Sensitivity

Unlike non-latching relay, latching relay is not designed to be used as highly sensitive ones. As far as latching relay is concerned, it does not possess extraordinarily high sensitivity. Sometimes it is impossible to distinguish between a non-latching relay and a latching relay. Their body may look the same.

Knob availability

The latching relays have indicating knobs that can also be used to operate the relay position manually. This feature does not available in all types of non-latching relays.

Applications

Although latching relays are super effective, they do not have a wide range of application areas. But non-latching relays can be used anywhere in automation and electronics. Non-latching relays are perfectly suitable for use in a wide range of applications including household appliances, vehicle engines, industrial machinery, and medical and telecommunication equipment.

Price and market size

The prices of latching relays are more expensive than non-latching relays. Moreover, the market size of non-latching relays is bigger than latching relays.

Lifespan

Every product has a finite service life. This means that no product can continue normal service infinitely. When a product has broken down, the user may throw it away or repair it. The service life of a non-latching relay is longer than a latching relay.
